Pressure Regulators Download Catalogue

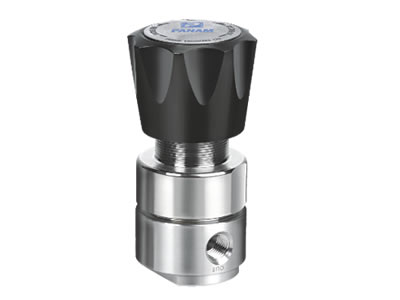

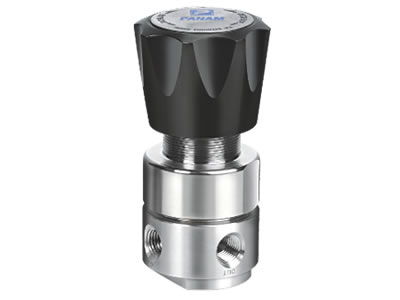

PANAM Piston sensed pressure regulator is available in Brass or 316 Stainless Steel construction with outlet pressures up to 2500 psig / 172 bar.
- Economical
- Compact design
- Piston sensed design is safe and reliable
- Adjustable stop limits maximum outlet pressure
- Choice of Stainless Steel or Brass construction
- Venting model is available
- Available with a variety of porting and material options.
Features and Benefits
- General purpose test stands
- Industrial equipment.
Applications
Operating Parameters (Pressure rating per criteria of ANSI / ASME B31.3) |
|
| Maximum Inlet Pressure | 6000 psig / 414 bar |
| Outlet Pressure Range | 0-2500 psig / 0-172 bar |
| Design Proof Pressure | 150% Maximum Rated |
| Leakage | Bubble-Tight |
| Ambient Operating & Fluid Media Temperature | -15°F / -26°C to 74°C |
| Flow Capacity | Non-Venting: Cv = 0.06 / Venting: Cv = 0.15 |
| Maximum Operating Torque | 25 in-ibs / 2.8 N.m |
| End Connections | 1/4" NPTF / BSPPF |
